DWV Sewer Fittings

Aymroo supplies an extensive range of both moulded and fabricated DWV fittings to suit all your specialised large diameter PVC plumbing needs.

Aymroo's Australian made large diameter moulded DWV fittings are moulded in state-of-the-art injection moulding machines in the latest best environmental practice BEP-uPVC technology resins, to the requirements of AS/NZS1260 and Watermark certified WM25747 (AMI Certificate WMCS2016).  Moulded DWV fittings are manufactured to SN6 AS/NZS1260 for use on SN4 up to SN16 pipe in Cloud Grey. Fabricated DWV fittings are manufactured to AS/NZS1260, triple welded for strength and fibre-glassed from socket to socket for strength and durability.

Solvent Cement Joint Female Sockets (SCJ F+F) are the standard fitting format unless specified. Fittings can be supplied with male end spigots for M+F and M+M  formats upon request. Rubber Ring Joint (RRJ) fittings are also available on request. Inspection Openings can be supplied to most fittings right hand, left hand or rear access.

• •

    Bend (Elbow)

  • • 5° Bend DWV SCJ F+F (Elbow)
      	CODE DESCRIPTION D1 S1 L1 L2 BDSR15005 150 X 5º DWV BEND  DN150  80  219 179 BDSR22505 225 X 5º DWV BEND  DN225  125 316 277 BDSR30005 300 X 5º DWV BEND  DN300 175 277 347 BDSR37505 375 X 5º DWV BEND  DN375 200 494 449




      15° Bend DWV SCJ F+F (Elbow)
      	CODE DESCRIPTION D1 S1 L1 L2 BDSR15015 150 X 15º DWV BEND  DN150 80 244 194 BDSR22515 225 X 15º DWV BEND (Moulded)  DN225 110 307 296 BDSR30015 300 X 15º DWV BEND  DN300  175 473 382 BDSR37515 375 X 15º DWV BEND  DN375 200 557  488




      22° Bend DWV SCJ F+F (Elbow)
      	CODE DESCRIPTION D1 S1 L1 L2 BDSR15022 150 X 22º DWV BEND  DN150  80  260 209 BDSR22522 225 X 22º DWV BEND  DN225  125 382 320 BDSR30022 300 X 22º DWV BEND  DN300  175 505 406 BDSR37522 375 X 22º DWV BEND  DN375  200 598 515




      30° Bend DWV SCJ F+F (Elbow)
      	CODE DESCRIPTION D1 S1 L1 L2 BDSR15030 150 X 30º DWV BEND  DN150  80  273 220 BDSR22530 225 X 30º DWV BEND  DN225  125 404 337 BDSR30030 300 X 30º DWV BEND  DN300 175 531 429 BDSR37530 375 X 30º DWV BEND  DN375 200 634 541




      45° Bend DWV SCJ F+F (Elbow)
      	CODE DESCRIPTION D1 S1 L1 L2 BDSR15045 150 X 45º DWV BEND (Moulded)  DN150 76 232 180 BDSR22545 225 X 45º DWV BEND (Moulded)  DN225  110 435 370 BDSR30045 300 X 45º DWV BEND (Moulded)  DN300 175 533 464 BDSR37545 375 X 45º DWV BEND (Moulded)  DN375 200 686 588

      Refer to Lobster Bend DWV for other sizes.


      60° Bend DWV SCJ F+F (Elbow)
      	CODE DESCRIPTION D1 S1 L1 L2 BDSR15060 150 X 60º DWV BEND  DN150  80  295 255 BDSR22560 225 X 60º DWV BEND  DN225  125 443 389 BDSR30060 300 X 60º DWV BEND  DN300 175 576 497

      Refer to Lobster Bend DWV for other sizes.


      88/90° Bend DWV SCJ F+F (Elbow)
      	CODE DESCRIPTION D1 S1 L1 L2 BDSR15090 150 X 88/90º DWV BEND (Moulded)  DN150 76 283 283 BDSR22590 225 X 88/90º DWV BEND (Moulded)  DN225 110 430 424 BDSR30090 300 X 88/90º DWV BEND (Moulded)  DN300 175 564 555

      Refer to Lobster Bend DWV for other sizes.
• •

    Lobster Bend

  • • 45° Lobster Bend DWV Sewer SCJ F+F
      	CODE DESCRIPTION D1 S1 L1 L2 LBSR37545 375 X 45º DWV LOBSTER BEND  DN375 200 714 600

      60° Lobster Bend DWV Sewer SCJ F+F
      	CODE DESCRIPTION D1 S1 L1 L2 LBSR15060 150 X 60º DWV LOBSTER BEND  DN150 80 307 263 LBSR22560 225 X 60º DWV LOBSTER BEND DN225 125 468 408 LBSR30060 300 X 60º DWV LOBSTER BEND DN300 175 600 514 LBSR37560 375 X 60º DWV LOBSTER BEND  DN375 200 748 647

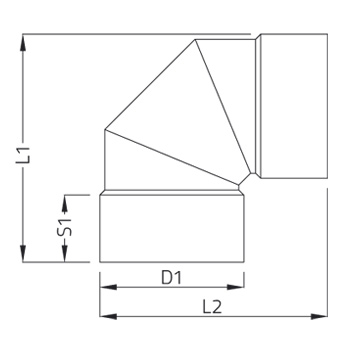

      90° Lobster Bend DWV Sewer SCJ F+F
      	CODE DESCRIPTION D1 S1 L1 L2 LBSR37590 375 X 90º DWV LOBSTER BEND  DN375 200 680 680

• •

    45º Junction

  • • 45° Junction DWV Sewer SCJ F+F

      CODE DESCRIPTION D1 D2 S1 S2 L1 L2 JNSR150104 150 X 100 X 45º DWV JUNCTION (Moulded) DN150 DN100 76 50 328 245 JNSR150154 150 X 150 X 45º DWV JUNCTION (Moulded) DN150 DN150 76 76 412 277 JNSR225104 225 X 100 X 45º DWV JUNCTION (Moulded) DN225 DN100 110 50 500 397 JNSR225154 225 X 150 X 45º DWV JUNCTION (Moulded) DN225 DN150 110 76 500 449 JNSR225224 225 X 225 X 45º DWV JUNCTION (Moulded) DN225 DN225 110 110 620 540 JNSR300104 300 X 100 X 45º DWV JUNCTION (Moulded) DN300 DN100 175 50 637 465 JNSR300154 300 X 150 X 45º DWV JUNCTION (Moulded) DN300 DN150 175 76 637 518 JNSR300224 300 X 225 X 45º DWV JUNCTION (Moulded) DN300 DN225 175 110 802 622 JNSR300304 300 X 300 X 45º DWV JUNCTION (Moulded) DN300 DN300 175 175 802 683 JNSR375104 375 X 100 X 45º DWV JUNCTION DN375 DN100 200 55 656 545 JNSR375154 375 X 150 X 45º DWV JUNCTION DN375 DN150 200 80 690 611 JNSR375224 375 X 225 X 45º DWV JUNCTION DN375 DN225 200 125 850 722 JNSR375304 375 X 300 X 45º DWV JUNCTION DN375 DN300 200 175 950 811 JNSR375374 375 X 375 X 45º DWV JUNCTION DN375 DN375 200 200 1056 887

• •

    90º Junction

  • • 90° Junction DWV Sewer SCJ F+F

      CODE DESCRIPTION D1 D2 S1 S2 L1 L2 JNSR150109 150 X 100 X 90º DWV JUNCTION (Moulded) DN150 DN100 76 50 300 260 JNSR150159 150 X 150 X 90º DWV JUNCTION (Moulded) DN150 DN150 76 76 355 288 JNSR225109 225 X 100 X 90º DWV JUNCTION (Moulded) DN225 DN100 110 50 500 336 JNSR225159 225 X 150 X 90º DWV JUNCTION (Moulded) DN225 DN150 110 76 500 362 JNSR225229 225 X 225 X 90º DWV JUNCTION (Moulded) DN225 DN225 110 110 500 396 JNSR300109 300 X 100 X 90º DWV JUNCTION DN300 DN100 175 55 495 390 JNSR300159 300 X 150 X 90º DWV JUNCTION DN300 DN150 175 80 575 440 JNSR300229 300 X 225 X 90º DWV JUNCTION DN300 DN225 175 125 665 485 JNSR300309 300 X 300 X 90º DWV JUNCTION DN300 DN300 175 175 735 542 JNSR375109 375 X 100 X 90º DWV JUNCTION DN375 DN100 200 55 560 483 JNSR375159 375 X 150 X 90º DWV JUNCTION DN375 DN150 200 80 610 523 JNSR375229 375 X 225 X 90º DWV JUNCTION DN375 DN225 200 125 730 577 JNSR375309 375 X 300 X 90º DWV JUNCTION DN375 DN300 200 175 800 635 JNSR375379 375 X 375 X 90º DWV JUNCTION DN375 DN375 200 200 870 669

• •

    45º Boss Connector

  • •


      45° Boss Connector DWV Sewer SCJ (Tapping Saddles)

      CODE DESCRIPTION D1 D2 L1 L2 BCSR100054 100 X 50 X 45º DWV BOSS CONNECTOR DN100  DN50 170 82 BCSR100104 100 X 100 X 45º DWV BOSS CONNECTOR DN100  DN100 250 162 BCSR150054 150 X 50 X 45º DWV BOSS CONNECTOR DN150 DN50 180 92 BCSR150104 150 X 100 X 45º DWV BOSS CONNECTOR (Moulded) DN150 DN100 257 179 BCSR150154 150 X 150 X 45º DWV BOSS CONNECTOR DN150 DN150 340 219 BCSR225104 225 X 100 X 45º DWV BOSS CONNECTOR (Moulded) DN225 DN100 350 158 BCSR225154 225 X 150 X 45º DWV BOSS CONNECTOR (Moulded) DN225 DN150 350 180 BCSR225224 225 X 225 X 45º DWV BOSS CONNECTOR DN225 DN225 550 583 BCSR300104 300 X 100 X 45º DWV BOSS CONNECTOR (Moulded)  DN300 DN100 350 158 BCSR300154 300 X 150 X 45º DWV BOSS CONNECTOR (Moulded)  DN300 DN150 350 180 BCSR300224 300 X 225 X 45º DWV BOSS CONNECTOR DN300 DN225 550 283 BCSR300304 300 X 300 X 45º DWV BOSS CONNECTOR DN300 DN300 650 357 BCSR375104 375 X 100 X 45º DWV BOSS CONNECTOR (Moulded)  DN375 DN100 350 158 BCSR375154 375 X 150 X 45º DWV BOSS CONNECTOR (Moulded)  DN375 DN150 350 180 BCSR375224 375 X 225 X 45º DWV BOSS CONNECTOR DN375 DN225 550 318 BCSR375304 375 X 300 X 45º DWV BOSS CONNECTOR DN375 DN300 650 354 BCSR375374 375 X 375 X 45º S/W BOSS CONNECTOR DN375 DN375 950 422




      45° Boss Connector DWV SCJ (Suits Fibre Reinforced Concrete Pipe)

      CODE DESCRIPTION D1 D2 L1 L2 BCSR450104 450 X 100 X 45º DWV BOSS CONNECTOR 450  DN100 290 148 BCSR450154 450 X 150 X 45º DWV BOSS CONNECTOR 450  DN150 380 198 BCSR450224 450 X 225 X 45º DWV BOSS CONNECTOR 450 DN225 550 283 BCSR450304 450 X 300 X 45º DWV BOSS CONNECTOR 450 DN300 650 354 BCSR525104 525 X 100 X 45º DWV BOSS CONNECTOR 525 DN100 290 148 BCSR525154 525 X 150 X 45º DWV BOSS CONNECTOR 525 DN150 380 198 BCSR525224 525 X 225 X 45º DWV BOSS CONNECTOR 525 DN225 550 283 BCSR525304 525 X 300 X 45º DWV BOSS CONNECTOR 525 DN300 650 354 BCSR600104 600 X 100 X 45º DWV BOSS CONNECTOR  600 DN100 290 148 BCSR600154 600 X 150 X 45º DWV BOSS CONNECTOR 600 DN150 380 198 BCSR600224 600 X 225 X 45º DWV BOSS CONNECTOR 600 DN225 550 283 BCSR600304 600 X 300 X 45º DWV BOSS CONNECTOR 600 DN300 650 354 BCSR675104 675 X 100 X 45º DWV BOSS CONNECTOR  675 DN100 290 148

• •

    90º Boss Connector

  • • 90° Boss Connector DWV Sewer SCJ (Tapping Saddles)

      CODE DESCRIPTION D1 D2 L1 L2 BCSR100059 100 X 50 X 90º DWV BOSS CONNECTOR DN100  DN50 136 60 BCSR100109 100 X 100 X 90º DWV BOSS CONNECTOR DN100  DN100 200 100 BCSR150059 150 X 50 X 90º DWV BOSS CONNECTOR DN150 DN50 136 60 BCSR150109 150 X 100 X 90º DWV BOSS CONNECTOR DN150 DN100 230 120 BCSR150159 150 X 150 X 90º DWV BOSS CONNECTOR DN150 DN150 270 120 BCSR225109 225 X 100 X 90º DWV BOSS CONNECTOR DN225 DN100 235 125 BCSR225159 225 X 150 X 90º DWV BOSS CONNECTOR DN225 DN150 330 140 BCSR225229 225 X 225 X 90º DWV BOSS CONNECTOR DN225 DN225 400 160 BCSR300109 300 X 100 X 90º DWV BOSS CONNECTOR  DN300 DN100 280 125 BCSR300159 300 X 150 X 90º DWV BOSS CONNECTOR  DN300 DN150 330 140 BCSR300229 300 X 225 X 90º DWV BOSS CONNECTOR DN300 DN225 400 150 BCSR300309 300 X 300 X 90º DWV BOSS CONNECTOR DN300 DN300 515 150 BCSR375109 375 X 100 X 90º DWV BOSS CONNECTOR  DN375 DN100 280 125 BCSR375159 375 X 150 X 90º DWV BOSS CONNECTOR  DN375 DN150 330 140 BCSR375229 375 X 225 X 90º DWV BOSS CONNECTOR DN375 DN225 400 150 BCSR375309 375 X 300 X 90º DWV BOSS CONNECTOR DN375 DN300 515 150 BCSR375379 375 X 375 X 90º DWV BOSS CONNECTOR DN375 DN375 760 200




      90° Boss Connector DWV Sewer SCJ (Suits Fibre Reinforced Concrete Pipe)
      	CODE DESCRIPTION D1 D2 L1 L2 BCSR450229 450 X 150 X 90º DWV BOSS CONNECTOR 450  DN150 330 140 BCSR450229 450 X 225 X 90º DWV BOSS CONNECTOR 450  DN225 400 150 BCSWSILC Fullers Silicone White 300gm Caulking Cartridge

      Boss Connectors are supplied standard with a SCJ Spigot branch connection.
      SCJ Sockets or RRJ Sockets can be supplied upon request.
      Moulded Boss Connectors are supplied with quick strap connectors and a cutting template.
      Fabricated Boss Connectors are welded only and supplied with polymer strapping and buckles.
      FRC suited Boss Connectors available on request. Please contact Aymroo for non-standard fitting formats and pricing.
• •

    End Cap

  • • End Cap DWV Sewer SCJ F
      	CODE DESCRIPTION D1 L1 ECSR150 150mm DWV END CAP (Moulded)  DN150 42 ECSR225 225mm DWV END CAP (Moulded)  DN225 54 ECSR300 300mm DWV END CAP (Moulded)  DN300 54 ECSR375 375mm DWV END CAP DN375 180

• •

    Threaded End Cap

  • • Threaded End Cap DWV Sewer
      	CODE DESCRIPTION D1 L1 TCSR100 100mm DWV THREADED END CAP (Moulded)  DN100 35 TCSR150 150mm DWV THREADED END CAP (Moulded)  DN150 38 TCSR225 225mm DWV THREADED END CAP (Moulded)  DN225 54

• •

    Access Cap

  • • Access Cap DWV Sewer SCJ F (Locking and Threaded)
      	CODE DESCRIPTION D1 D2 L1 MSACL25000 225mm ACCESS CAP (Locking Trap Screw) (Moulded) DN225 262 125 MSACL30000 300mm ACCESS CAP (Locking Trap Screw) (Moulded) DN300 330 111 CTSR225 225mm DWV TRAP SCREW WITH 225 THREADED CAP (Moulded) DN225 291 239 MSACSPAN 225mm ACCESS CAP SPANNER

• •

    Bolted Trap Screw

  • • Bolted Trap Screw DWV Sewer SCJ F
      	CODE DESCRIPTION D1 D2 S1 L1 BTSR150 150mm DWV BOLTED TRAP SCREW DN150 208 80 113 BTSR225 225mm DWV BOLTED TRAP SCREW DN225 310 125 162 BTSR300 300mm DWV BOLTED TRAP SCREW DN300 380 175 223 BTSR375 375mm DWV BOLTED TRAP SCREW DN375 450 200 245

• •

    90º Inspection Opening

  • •


      90° Inspection Opening DWV Sewer SCJ F+F

      CODE DESCRIPTION D1 D2 S1 L1 L2 IBSR225100 225 X 100 DWV INSPECTION OPENING (TAC) (Moulded) DN225 DN100 110 500 346 IBSR225150 225 X 150 DWV INSPECTION OPENING (TAC) (Moulded) DN225 DN150 110 500 375 IBSR225225 225 X 225 DWV INSPECTION OPENING (TAC) (Moulded) DN225 DN225 110 500 416 IBSR300150 300 X 150 DWV INSPECTION OPENING (TAC)  DN300 DN150 175 565 375 IBSR300225 300 X 225 DWV INSPECTION OPENING (TAC) DN300 DN225 175 665 450 IBSR375150 375 X 150 DWV INSPECTION OPENING (TAC) DN375 DN150 200 628 472 IBSR375225 375 X 225 DWV INSPECTION OPENING (TAC) DN375 DN225 200 730 539


      TAC - Threaded Access Cap Fitted Standard (100mm, 150mm, 225mm)
      LTS - Locking Trap Screw can be fitted upon request (225mm, 300mm)
      Inspection Openings are also referred to as Test Openings, Inspection Tee, Access Fitting, IO Junction. Inspection Openings can also be supplied to all Bends, Junctions, Right Hand, Left Hand or Rear Access. Please contact Aymroo for non-standard fitting formats and pricing.



      90° Clamp On Inspection Opening DWV Sewer SCJ (Boss Connector IO)

      CODE DESCRIPTION D1 D2 L1 L2 IOSR150100 150 X 100 BOSS CONNECTOR INSPECTION OPENING DN150 DN100 230 47 IOSR225100 225 X 100 BOSS CONNECTOR INSPECTION OPENING DN225 DN100 240 47 IOSR225150 225 X 150 BOSS CONNECTOR INSPECTION OPENING DN225 DN150 330 57 IOSR225225 225 X 225 BOSS CONNECTOR INSPECTION OPENING DN225 DN225 400 124 IOSR300100 300 X 100 BOSS CONNECTOR INSPECTION OPENING DN300 DN100 280 47 IOSR300150 300 X 150 BOSS CONNECTOR INSPECTION OPENING DN300 DN150 330 57 IOSR300225 300 X 225 BOSS CONNECTOR INSPECTION OPENING DN300 DN225 400 124 IOSR300300 300 X 300 BOSS CONNECTOR INSPECTION OPENING DN300 DN300 515 130 IOSR375100 375 X 100 BOSS CONNECTOR INSPECTION OPENING DN375 DN100 280 47 IOSR375150 375 X 150 BOSS CONNECTOR INSPECTION OPENING DN375 DN150 330 57 IOSR375225 375 X 225 BOSS CONNECTOR INSPECTION OPENING DN375 DN225 400 124 IOSR375300 375 X 300 BOSS CONNECTOR INSPECTION OPENING DN375 DN300 515 130


      Clamp On Inspection Openings are supplied standard with a Threaded Cap, unless specified. Locking Trap Screw (LTS 225mm, 300mm) available upon request. Fabricated Clamp On Inspection Openings are welded only and supplied with polymer strapping and buckles. FRC suitable Clamp On Inspection Openings are available on request. Please contact Aymroo for non-standard fitting formats and pricing.
• •

    Reflux Valve

  • • Reflux Valve DWV Sewer SCJ F+F
      	CODE DESCRIPTION D1 L1 L2 L3  REFLUX100  100mm REFLUX VALVE (Moulded) DN100  770  396 40   REFLUX150 150mm REFLUX VALVE (Moulded) DN150 660 396 40 REFLUX225 225mm REFLUX VALVE DN225 800 520 40 REFLUX300 300mm REFLUX VALVE DN300 800 550 40 REFSEAL150 150mm REFLUX PLATE and SEAL (Moulded) REFHINGE150 150mm REFLUX HINGE PLUG (Moulded)


      Aymroo PVC Reflux Valves are available standard with solvent cement joint sockets and are also available in rubber ring joint sockets upon request. Available in sizes from 150mm up to 300mm. Aymroo Reflux Valves are designed with built-in free flowing grade, with minimum drop and no restrictive pooling inverts. Aymroo Reflux Valves free flowing grade prevents debris jamming and sticking valves that can occur in other types of Reflux Valves. 150mm Aymroo Reflux Valve supplied with 225x150 LIT outlet fitted. 150mm Aymroo Reflux Valves can be buried direct. 225mm and 300mm Aymroo Reflux Valves are required to be installed in a pit. Please contact Aymroo for non-standard fitting formats and pricing.


• •

    Level Invert Taper

  • • Level Invert Taper DWV Sewer SCJ M+F (Level Invert Reducer)

      CODE DESCRIPTION D1 D2 S2 L1 LISR150100 150 X 100 DWV LEVEL INVERT TAPER (Moulded) DN150 DN100 50 233 LISR225100 225 X 100 DWV LEVEL INVERT TAPER (Moulded) DN225 DN100 50 270 LISR225150 225 X 150 DWV LEVEL INVERT TAPER (Moulded) DN225 DN150 76 270 LISR300100 300 X 100 DWV LEVEL INVERT TAPER (Moulded) DN300 DN100 50 350 LISR300150 300 X 150 DWV LEVEL INVERT TAPER (Moulded) DN300 DN150 76 350 LISR300225 300 X 225 DWV LEVEL INVERT TAPER (Moulded) DN300 DN225 110 298 LISR375100 375 X 100 DWV LEVEL INVERT TAPER DN375 DN100 55 284 LISR375150 375 X 150 DWV LEVEL INVERT TAPER DN375 DN150 80 314 LISR375225 375 X 225 DWV LEVEL INVERT TAPER DN375 DN225 125 358 LISR375300 375 X 300 DWV LEVEL INVERT TAPER DN375 DN300 125 389


      Level Invert Tapers are supplied standard with major diameter SCJ Spigots and minor diameter SCJ Sockets. Please contact Aymroo for non-standard fitting formats and pricing.
• •

    Straight Coupling

  • • Straight Coupling DWV Sewer SCJ F+F
      	CODE DESCRIPTION D1 L1 CPSR150 150mm DVW COUPLING THREADED (Moulded) DN150 156 CPSR225 225mm DVW COUPLING THREADED (Moulded) DN225 226 CPSR300 300mm DVW COUPLING (Moulded) DN300 358 CPSR375 375mm DVW COUPLING DN375 430

• •

    Slab Repair Coupling

  • • Slab Repair Coupling DWV Sewer SCJ

      CODE DESCRIPTION D1 D2 L1 L2 SLAB040 40mm DWV SLAB REPAIR COUPLING 40 43 100 230 SLAB050 50mm DWV SLAB REPAIR COUPLING 50 55 100 230 SLAB065 65mm DWV SLAB REPAIR COUPLING 63 69 100 230 SLAB080 80mm DWV SLAB REPAIR COUPLING 75 82 100 230 SLAB090 90mm DWV SLAB REPAIR COUPLING 86 94 100 230 SLAB100 100mm DWV SLAB REPAIR COUPLING 102 111 100 230 SLAB150 150mm DWV SLAB REPAIR COUPLING 151 160 100 230 SLAB225 225mm DWV SLAB REPAIR COUPLING 237 250 150 330 SLAB300 300mm DWV SLAB REPAIR COUPLING 301 315 150 330 SLAB375 375mm DWV SLAB REPAIR COUPLING 375 400 150 330


      Slab Repair Couplings are supplied standard with a SCJ internal spigot at one end and a SCJ spigot at the other end. Slab Repair Couplings can be supplied socketed upon request. Please contact Aymroo for non-standard fitting formats and pricing.
• •

    Slip Coupling

  • • Slip Coupling DWV Sewer SCJ F+F (Repair Coupling)
      	CODE DESCRIPTION D1 L1 SLCPSR150 150mm DWV SLIP COUPLING DN150 250 SLCPSR225 225mm DWV SLIP COUPLING DN225 270 SLCPSR300 300mm DWV SLIP COUPLING DN300 290 SLCPSR375 375mm DWV SLIP COUPLING DN375 290

• •

    Rubber Ring Adaptor

  • • Rubber Ring Adaptor RRJ F+M
      	CODE DESCRIPTION D1 D2 L1 L2 L3 MSRR100 100mm RUBBER RING ADAPTOR DN100 132 55 45 30 MSRR150 150mm RUBBER RING ADAPTOR DN150 185 80 55 40 MSRR225 225mm RUBBER RING ADAPTOR DN225 287 125 75 50 MSRR300 300mm RUBBER RING ADAPTOR DN300 345 175 120 50 MSRR375 375mm RUBBER RING ADAPTOR DN375 550 200 150 100


      Rubber ring adaptors are formed from DWV pipe and supplied standard with a rubber ring socket, rubber ring and a spigot. Aymroo’s Rubber Ring Adaptors are the ideal fitting to convert SCJ fittings to a rubber ring joint.
• •

    Access Chamber Coupling

  • • Access Chamber Coupling RRJ M+F (Standard Manhole Coupling)
      	CODE DESCRIPTION D1 L1 L2 ACCESS100500 100 x 500 ACCESS CHAMBER CONNECTOR (Sanded) DN100 500 150 ACCESS150500 150 x 500 ACCESS CHAMBER CONNECTOR (Sanded) DN150  506 150 ACCESS225500 225 x 500 ACCESS CHAMBER CONNECTOR (Sanded) DN225  566 150 ACCESS300500 300 x 500 ACCESS CHAMBER CONNECTOR (Sanded) DN300  609  150 ACCESS375500 375 x 500 ACCESS CHAMBER CONNECTOR (Sanded) DN375  600  190

• •

    Boundary Traps

  • • Disconnector Trap (Boundary Trap)
      	CODE DESCRIPTION D1 S1 L1 L2 L3 L4 TRAP150 150mm DISCONNECTOR TRAP(BOUNDARY TRAP)  DN150 80 516 563 384 100 TRAP225 225mm DISCONNECTOR TRAP(BOUNDARY TRAP)  DN225 125 751 856 552 100 TRAP300 300mm DISCONNECTOR TRAP(BOUNDARY TRAP)  DN300 175 1050 1000 600 100




      No Loss Boundary Trap DWV Sewer SCJ F+F
      	CODE DESCRIPTION D1 S1 L1 L2 L3 L4 TRAPNL150 150mm NO LOSS BOUNDARY TRAP DN150 76 620 770 380 205 TRAPNL225 225mm NO LOSS BOUNDARY TRAP DN225 125 950 1080 515 100 TRAPNL300 300mm NO LOSS BOUNDARY TRAP DN300 175 1122 1327 578 100

      Boundary Traps can be used in any application where an inline water seal is required in a sewer line. Boundary Traps (Disconnector Trap) and No Loss Boundary Trap versions are both available. Please contact Aymroo for non-standard fitting formats and pricing.
• •

    Drop Junction

  • • Drop Junction RRJ F+M (Drop Tee)
      	CODE DESCRIPTION D1 D2 L1 L2 L3 DRJN150150 150 x 150 DROP JUNCTION  DN150  DN150 600 341 220 DRJN225225 225 x 225 DROP JUNCTION  DN225  DN225 746 494 240 DRJN300300 300 x 300 DROP JUNCTION  DN300  DN300 940 623 302

      Used in manhole applications, Aymroo Drop Junctions have gussets for easy manipulation of sewer line inspection cameras and improved flow of waste water. Aymroo Drop Junctions are supplied standard with RRJ Socket, SCJ line and branch Spigots. Also referred to as a Drop Tee.
• •

    Drop Bend

  • • Drop Bend SCJ M+F
      	CODE DESCRIPTION D1 S1 D2 S2 L1 L2 DRBD100100 100 x 100 DROP BEND  DN100 55 DN100 55 205 208 DRBD150150 150 x 150 DROP BEND  DN150  80 DN150 80 304 307 DRBD225225 225 x 225 DROP BEND  DN225  110 DN225 110 430 424 DRBD225150 225 x 150 DROP BEND DN225  110 DN150 80 596 423 DRBD300225 300 x 225 DROP BEND DN300   175 DN225 110 733 546

• •

    Offset

  • • Offsets DWV SCJ F+F
      	CODE DESCRIPTION D1 S1 L1 L2 L3 OFFSR225 225mm DWV OFFSET  DN225  125 498 364 100 OFFSR300 300mm DWV OFFSET  DN300  175 625 430 100 OFFSR375 375mm DWV OFFSET  DN375  200 726 530 100

      Offsets are supplied standard with a 45° angle and 100mm offset of socket centres. Offsets with alternative lengths and traverse or other special angles are available on request. Please contact Aymroo to specify your Offset requirements and confirm pricing.
• •

    Flanges

  • • Flanges DWV Sewer (Undriled)
      	CODE DESCRIPTION D1 D2 S1 L1 FLANSR100 100mm DWV FLANGE DN100  215 55 68 FLANSR150 150mm DWV FLANGE DN150 280 80 94 FLANSR225 225mm DWV FLANGE DN225 405 125 147 FLANSR300 300mm DWV FLANGE DN300 455 175 198  FLANSR375 375mm DWV FLANGE DN375 580 200 223

• •

    Vent Cowls

  • • Vent Cowls SCJ F
      	CODE DESCRIPTION D1 S1 L1 L2 VENT100 100mm VENT COWL  DN100  55  275 101 VENT150 150mm VENT COWL  DN150  80 371 147 VENT225 225mm VENT COWL  DN225 125 453 206 VENT300 300mm VENT COWL  DN300 175 550 272
